High Temperature Cables

High Temperature Cables :BS3G210 PTFE Single Core

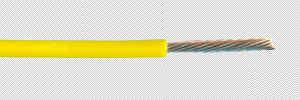

High Temperature Cables :BS3G210 PTFE Single Core

These cables are manufactured to BS3G210 and operate up to 200°C or short term 250²C with silver plated conductors. (Nickel plated conductor versions to work up to 260°C are available to special order).

PTFE is a remarkable material. It is unaffected by most oils, fuels and fluids. The high temperature range makes it resistant to damage from heat sources such as soldering irons.

Other voltage ratings are available with many of the wires conforming to American MIL, VDE, DIN, BS, or Lloyd's standards.

Multi-core and screened or armoured versions can also be manufactured in many sizes and styles.



Technical Information

Voltage Working

Type A 300V

Test 2500V



Type B 600V

Test 3400V



Type C 1000V

Test 5000V

TemperatureRange

Static -55°C to +200°C

Short Term +250°C

Bending Radius

Static 6 x cable diameter

Conductor material

Silver plated copper

Manufactured to BS3G210.

High Temperature Cables : BS3G210 PTFE Single Core

Technical Data

Size
AWG

Stranding
x mm

CSA
mm²

Voltage
Grade

Weight
Kg/Km

O/D mm
min - max

 30

 7/0.10

 0.056

 A

 1.1

 0.50-0.65

 28

 7/0.12

 0.089

 A

 1.4

 0.56-0.71

 28

 7/0.12

 0.089

 B

 2.1

 0.76-0.96

 26

 7/0.15

 0.14

 A

 1.1

 0.65-0.80

 26

 7/0.15

 0.14

 B

 3.09

 0.85-1.05

 24

 7/0.20

 0.22

 A

 3.04

 0.80-0.95

 24

 7/0.20

 0.22

 B

 3.89

 1.00-1.20

 24

 7/0.20

 0.22

 C

 4.64

 1.26-1.52

 22

 19/0.15

 0.35

 A

 4.41

 0.95-1.10

 22

 19/0.15

 0.35

 B

 5.44

 1.15-1.35

 22

 19/0.15

 0.35

 C

 6.43

 1.41-1.67

 20

 19/0.20

 0.61

 A

 7.19

 1.20-1.35

 20

 19/0.20

 0.61

 B

 8.43

 1.40-1.60

 20

 19/0.20

 0.61

 C

 9.08

 1.66-1.92

 18

 19/0.25

 0.96

 B

 12.1

 1.65-1.85

 18

 19/0.25

 0.96

 C

 14.3

 1.91-2.17

 16

 19/0.30

 1.23

 C

 16.5

 2.16-2.46

 14

 19/0.36

 1.94

 C

 23.9

 2.34-2.74

 12

 19/0.45

 3.08

 C

 38.5

 2.91-3.31

 10

 37/0.40

 4.65

 C

 56.0

 3.46-3.86
