Railway Cables

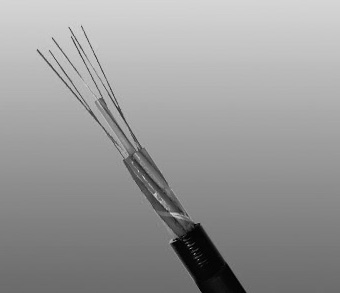

Outdoor Single Mode Trackside Fiber Cables NR/PS/TEL/00014

Outdoor Single Mode Trackside Fiber Cables NR/PS/TEL/00014

Application

The cables are fibre communications cable designed for use in high traffic and data rate requirements.

Standards

● NR/PS/TEL/00014 (formerly RT/E/PS/00014)

Construction

Fibre
Step Index Singlemode Fibres in accordance with ITU-T recommendation G.652.9/125 μm Fibre @ 1310nm &1550nm.

Fibre Carrier
PE.

Central Strength Member
Single continuous non-metallic.

Binding Tape
Polymeric loose tubes fi lled with water blocking material.

Inner Sheath
PE (Polyethylene) Type 03C to BS 6234 or LSZH Sheath.

Sheath
PE (Polyethylene) Type 03C to BS 6234 or LSZH sheath.

Optional

Armoured Cables: Corrugated steel tape armoured cables can be offered as an option.

Electrical Characteristics at 20℃

Maximum Attenuation
G652
@1310nm
dB/km
0.35
@1550nm
dB/km
0.22
Maximum Chromatic Dispersion
Between 1260 and 1360nm
ps/(nm/km)
3.5
Between 1530 and 1565nm
ps/(nm/km)
19
Zero Dispersion Wavelength
nm
1310±11
Zero Dispersion Slope
ps/(nm2.km)
0.09
Numerical Aperture
0.14
Point discontinuity
dB
0.1
PMD (individual fi ber)
ps/km
0.2
Maximum Cutoff Wavelength
nm
1260
Cladding Diameter
um
125±1
Core/Cladding Concentricity Error
um
≤0.5
Cladding Non Circularity
%
≤1
Coating Non Circularity
%
≤6
Proof Test Level
Kpsi (GN/m2)
100 (0.7)
Crush Resistance
N/cm
300
Maximum Laying Tension
N
From 12 to 72 FO: 2500;144 FO: 3000

Mechanical and Thermal Properties

Minimum Bending Radius: 12×OD .
Temperature Range: -20℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)
