| CSA AWM I/II A/B Double Insulation Hook - Wire |
 Conductor：
Annealed Copper Wire，(Bare Single,Tinned Single, or Tinned Strand)
Insulation：
PVC ( Polyvinyl Chloride)

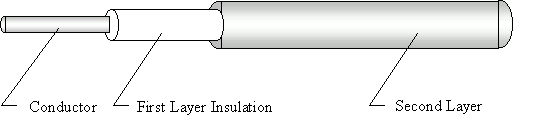

Structure：
Conductor |
Insulation (first layer) |
Insulation
(second layer) |
Conductor
Resistance(20℃) |
AWG |
Construction |
Diameter |
Min
Thickness |
Nominal
Thickness |
Diameter |
Min
Thickness |
Nominal
Thickness |
Diameter |
24 |
7 / 0.20TA |
approx.
0.60 mm |
0.686mm |
0.80 mm |
2.20 ± 0.10 mm |
0.30 mm |
0.45 mm |
3.10 ± 0.10 mm |
85.95W / Km |
24 |
11 / 0.16TA |
approx.
0.61 mm |
0.795 mm |
2.20 ± 0.10 mm |
0.45 mm |
3.10 ± 0.10 mm |
85.49W / Km |
24 |
1 / 0.51TA |
approx.
0.51 mm |
0.82 mm |
2.15 ± 0.10 mm |
0.45 mm |
3.05 ± 0.10 mm |
89.20W / Km |
22 |
7 / 0.26TA |
approx.
0.78 mm |
0.785 mm |
2.35 ± 0.10 mm |
0.40 mm |
3.15 ± 0.10 mm |
54.79W / Km |
22 |
17 / 0.16TA |
approx.
0.76 mm |
0.795 mm |
2.35 ± 0.10 mm |
0.40 mm |
3.15 ± 0.10 mm |
59.74W / Km |
22 |
17/ 0.16 TA |
approx.
0.76 mm |
0.795 mm |
2.35 ± 0.10 mm |
0.275 mm |
2.90 ± 0.10 mm |
59.74W / Km |
22 |
1 / 0.65TA |
approx.
0.65 mm |
0.783 mm |
2.30 ± 0.10 mm |
0.425 mm |
3.15 ± 0.10 mm |
56.30W / Km |
20 |
7 / 0.32TA |
approx.
0.96 mm |
0.82 mm |
2.60 ± 0.10 mm |
0.45 mm |
3.50 ± 0.10 mm |
34.12W / Km |
20 |
1 / 0.813TA |
approx.
0.813 mm |
0.825 mm |
2.45 ± 0.10 mm |
0.45 mm |
3.35 ± 0.10 mm |
35.20W / Km |
18 |
1 / 1.02TA |
approx.
1.02 mm |
0.79 mm |
2.60 ± 0.10 mm |
0.45 mm |
3.50 ± 0.10 mm |
22.20W / Km |
Characteristics：
Items |
Specification |
Rating |
UL：105℃ 600V，CSA：105℃ 600V |
Dielectric Strength |
AC 3000V / min. |
Insulation Resistance |
Min. 10MW - Km (20℃) at DC 500V |
Flame Test |
UL：758VW-1 |
Elongation of Insulation |
CSA：C.22NO210.2FT1 |
Min.100 ﹪ |
Tensile Strength of Insulation |
Min.1.05Kg / mm2 |
Residual of Elongation after Aging |
Min. 65 ﹪of original (CSA) (113℃,168H)
Min. 70 ﹪of original (113℃，168H) |
Residual of Tensile Strength after Aging |
Min. 70 ﹪of original (113℃，168H) |
|
|
|
