All Aluminum Conductor (AAC) Cables
Construction
Concentric lay stranded Aluminium Conductor ( AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy. These conductors are used in low, medium and high voltage overhead lines.
AAC has seen extensive use in urban areas where spans are usually short but high conductivity us equired. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas.
Because of its relatively poor strength to weight ratio, AAC had limited use in transmission lines and rural distribution because of long spans utilized.

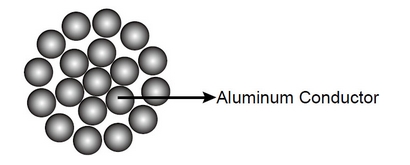

All aluminium conductors are made up of one or more strands of aluminium wire dep.
Construction Parameters
BS 215 Part 1
Code |
Nominal Area |
Stranding |
Overall Diameter |
Weight |
Rated Strength |
Electrical Resistance |
Current Rating* |
Nominal |
Teorical |
|
mm² |
mm² |
No.×mm |
mm |
kg/km |
KN |
Ω/Km |
A |
Midge |
22 |
23.33 |
7/2.06 |
6.18 |
64 |
3.99 |
1.227 |
106 |
Gnat |
25 |
26.8 |
7/2.21 |
6.6 |
73.8 |
4.83 |
1.0643 |
122 |
Mosquito |
35 |
37 |
7/2.59 |
7.8 |
102.1 |
6.27 |
0.7749 |
141 |
Ladybird |
40 |
42.8 |
7/2.79 |
8.4 |
117.9 |
7.28 |
0.6678 |
157 |
Ant |
50 |
52.83 |
7/3.1 |
9.3 |
145 |
8.28 |
0.5419 |
175 |
Fly |
60 |
63.55 |
7/3.4 |
10.2 |
174 |
9.9 |
0.4505 |
196 |
Wasp |
100 |
106 |
7/4.39 |
13.17 |
290 |
16 |
0.2702 |
268 |
Hornet |
150 |
157.6 |
19/3.25 |
16.25 |
434 |
25.7 |
0.1825 |
342 |
Charfer |
200 |
213.2 |
19/3.78 |
18.9 |
587 |
35.4 |
0.1349 |
412 |
Cockroach |
250 |
265.7 |
19/4.22 |
21.1 |
731 |
40.4 |
0.1083 |
471 |
Butterfly |
300 |
322.7 |
19/4.65 |
23.25 |
888 |
48.75 |
0.08916 |
530 |
Centipede |
400 |
415.2 |
37/3.78 |
26.46 |
1145 |
63.1 |
0.06944 |
616 |
Maybug |
475 |
486,1 |
37/4,09 |
28,6 |
1342 |
0.05571 |
0,05900 |
740 |
Skorpion |
500 |
529,8 |
37/4,27 |
29,9 |
1460 |
0.04916 |
0,05400 |
887 |
Cicada |
600 |
628,3 |
37/4,65 |
32,6 |
1733 |
0.03423 |
0,04500 |
1056 |
Note: *The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
BS EN 50182
Code |
Nominal Area |
Stranding |
Overall Diameter |
Weight |
Rated Strength |
Electrical Resistance |
Current Rating* |
Nominal |
Teorical |
|
mm² |
mm² |
No.×mm |
mm |
kg/km |
KN |
Ω/Km |
A |
Gnat |
25 |
26.9 |
7/2.21 |
6.63 |
73 |
4.83 |
1.0643 |
115 |
Mosquito |
35 |
36.9 |
7/2.59 |
7.77 |
101 |
6.27 |
0.7749 |
140 |
Ladybird |
40 |
42.8 |
7/2.79 |
8.37 |
117 |
7.28 |
0.6678 |
154 |
Bluebottle |
70 |
73.6 |
7/3.66 |
10.98 |
201 |
11.78 |
0.388 |
215 |
Earwig |
75 |
78.6 |
7/3.78 |
11.34 |
215 |
12.57 |
0.3638 |
223 |
Grasshopper |
80 |
84.1 |
7/3.91 |
11.73 |
230 |
13.45 |
0.34 |
233 |
Clegg |
90 |
95.6 |
7/4.17 |
12.51 |
261 |
15.3 |
0.2989 |
252 |
Beetle |
100 |
106.4 |
19/2.67 |
13.35 |
292 |
18.08 |
0.2701 |
269 |
Bee |
120 |
132 |
7/4.90 |
14.7 |
361 |
21.12 |
0.2165 |
307 |
Caterpillar |
180 |
185.9 |
19/3.53 |
17.65 |
511 |
29.75 |
0.1546 |
379 |
Spider |
220 |
237.6 |
19/3.99 |
19.95 |
653 |
38.01 |
0.121 |
440 |
Moth |
350 |
373.1 |
19/5.00 |
25 |
1025 |
59.69 |
0.077 |
579 |
Drone |
350 |
372.4 |
37/3.58 |
25.06 |
1027 |
59.59 |
0.0774 |
577 |
Maybug |
450 |
486.1 |
37/4.09 |
28.63 |
1341 |
77.78 |
0.0593 |
677 |
Scorpion |
500 |
529.8 |
37/4.27 |
29.89 |
1461 |
84.77 |
0.0544 |
713 |
Cicada |
600 |
628.3 |
37/4.65 |
32.55 |
1733 |
100.54 |
0.0459 |
788 |
Note: *The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
IEC 61089
Code |
Nominal Area |
Stranding |
Overall Diameter |
Weight |
Rated Strength |
Electrical Resistance |
Current Rating* |
mm² |
No.×mm |
mm |
kg/km |
KN |
Ω/Km |
A |
10 |
10 |
7/1.35 |
4.05 |
27.4 |
1.95 |
2.8633 |
62 |
16 |
16 |
7/1.71 |
5.13 |
43.8 |
3.04 |
1.7896 |
84 |
25 |
25 |
7/2.13 |
6.39 |
68.4 |
4.5 |
1.1453 |
110 |
40 |
40 |
7/2.70 |
8.1 |
109.4 |
6.8 |
0.7158 |
147 |
63 |
63 |
7/3.39 |
10.17 |
172.3 |
10.39 |
0.4545 |
195 |
100 |
100 |
19/2.59 |
12.95 |
274.8 |
17 |
0.2877 |
259 |
125 |
125 |
19/2.89 |
14.45 |
343.6 |
21.25 |
0.2302 |
297 |
160 |
160 |
19/3.27 |
16.35 |
439.8 |
26.4 |
0.1798 |
345 |
200 |
200 |
19/3.66 |
18.3 |
549.7 |
32 |
0.1439 |
396 |
250 |
250 |
19/4.09 |
20.45 |
687.1 |
40 |
0.1151 |
454 |
315 |
315 |
37/3.29 |
23.03 |
867.9 |
51.97 |
0.0916 |
522 |
400 |
400 |
37/3.71 |
25.97 |
1102 |
64 |
0.0721 |
603 |
450 |
450 |
37/3.94 |
27.58 |
1239.8 |
72 |
0.0641 |
647 |
500 |
500 |
37/4.15 |
29.05 |
1377.6 |
80 |
0.0577 |
688 |
560 |
560 |
37/4.39 |
30.73 |
1542.9 |
89.6 |
0.0515 |
736 |
630 |
630 |
61/3.63 |
32.67 |
1738.3 |
100.8 |
0.0458 |
789 |
710 |
710 |
61/3.85 |
34.65 |
1959.1 |
113.6 |
0.0407 |
845 |
800 |
800 |
61/4.09 |
36.81 |
2207.4 |
128 |
0.0361 |
905 |
900 |
900 |
61/4.33 |
38.97 |
2483.3 |
144 |
0.0321 |
967 |
1000 |
1000 |
61/4.57 |
41.13 |
2759.2 |
160 |
0.0289 |
1026 |
1120* |
1120 |
91/3.96 |
43.56 |
3093.5 |
179.2 |
0.0258 |
1091 |
1250* |
1250 |
91/4.18 |
45.98 |
3452.6 |
200 |
0.0231 |
1157 |
1400* |
1400 |
91/4.43 |
48.73 |
3866.9 |
224 |
0.0207 |
1226 |
1500* |
1500 |
91/4.58 |
50.38 |
4143.1 |
240 |
0.0193 |
1270 |
* The items marked with “*” are not in our current product range and the details are for information only.
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
ASTM B 231/B 231M
Code |
Nominal Area |
Stranding |
Overall Diameter |
Weight |
Rated Strength |
Electrical Resistance |
Current Rating* |
|
AWG&MCM |
mm² |
No.×mm |
mm |
kg/km |
KN |
Ω/Km |
A |
Peachbell |
6 |
13.3 |
7/1.56 |
4.68 |
36.6 |
2.53 |
2.1477 |
75 |
Rose |
4 |
21.1 |
7/1.96 |
5.88 |
58.2 |
3.91 |
1.3606 |
99 |
Iris |
2 |
33.6 |
7/2.47 |
7.41 |
92.6 |
5.99 |
0.8567 |
132 |
Pansy |
1 |
42.4 |
7/2.78 |
8.34 |
116.6 |
7.3 |
0.6763 |
153 |
Poppy |
1/0.0 |
53.5 |
7/3.12 |
9.36 |
147.2 |
8.84 |
0.5369 |
176 |
Aster |
2/0.0 |
67.4 |
7/3.50 |
10.5 |
185.7 |
11.1 |
0.4267 |
203 |
Phlox |
3/0.0 |
85 |
7/3.93 |
11.79 |
233.9 |
13.5 |
0.3384 |
234 |
Oxlip |
4/0.0 |
107.2 |
7/4.42 |
13.26 |
295.2 |
17 |
0.2675 |
270 |
Valerian |
250 |
126.7 |
19/2.91 |
14.55 |
348.6 |
20.7 |
0.2274 |
299 |
Sneezewort |
250 |
126.7 |
7/4.80 |
14.4 |
348.8 |
20.1 |
0.2269 |
299 |
Laurel |
266.8 |
135.2 |
19/3.01 |
15.05 |
372.2 |
22.1 |
0.2125 |
312 |
Daisy |
266.8 |
135.2 |
7/4.96 |
14.88 |
372.3 |
21.4 |
0.2125 |
311 |
Peony |
300 |
152 |
19/3.19 |
15.95 |
418.3 |
24.3 |
0.1892 |
335 |
Tulip |
336.4 |
170.5 |
19/3.38 |
16.9 |
469.5 |
27.3 |
0.1686 |
359 |
Daffodil |
350 |
177.3 |
19/3.45 |
17.25 |
487.9 |
28.4 |
0.1618 |
369 |
Canna |
397.5 |
201.4 |
19/3.67 |
18.35 |
554.9 |
31.6 |
0.143 |
397 |
Goldentuft |
450 |
228 |
19/3.91 |
19.55 |
627.6 |
35 |
0.126 |
429 |
Syringa |
477 |
241.7 |
37/2.88 |
20.16 |
664.8 |
38.6 |
0.1192 |
444 |
Cosmos |
477 |
241.7 |
19/4.02 |
20.1 |
664.8 |
37 |
0.1192 |
444 |
Hyacinth |
500 |
253.3 |
37/2.95 |
20.65 |
696.8 |
40.5 |
0.1136 |
458 |
Zinnia |
500 |
253.3 |
19/4.12 |
20.6 |
697.1 |
38.9 |
0.1134 |
458 |
Dahlia |
556.5 |
282 |
19/4.35 |
21.75 |
775.8 |
43.3 |
0.1018 |
489 |
Mistletoe |
556.5 |
282 |
37/3.12 |
21.84 |
775.7 |
44.3 |
0.1016 |
490 |
Meadowsweet |
600 |
304 |
37/3.23 |
22.61 |
836.3 |
47.5 |
0.0948 |
511 |
Orchid |
636 |
322.3 |
37/3.33 |
23.31 |
886.9 |
50.4 |
0.0892 |
530 |
Heuchera |
650 |
329.4 |
37/3.37 |
23.59 |
907.4 |
51.7 |
0.0871 |
538 |
Flag |
700 |
354.7 |
61/2.72 |
24.48 |
975.8 |
57.1 |
0.0811 |
561 |
Varbena |
700 |
354.7 |
37/3.49 |
24.43 |
975.7 |
55.4 |
0.0812 |
561 |
Nasturtium |
715.5 |
362.6 |
61/2.75 |
24.75 |
998.5 |
58.4 |
0.0793 |
569 |
Violet |
715.5 |
362.6 |
37/3.53 |
24.71 |
998.5 |
56.7 |
0.0794 |
568 |
Cattail |
750 |
380 |
61/2.82 |
25.38 |
1046 |
60.3 |
0.0754 |
587 |
Petunia |
750 |
380 |
37/3.62 |
25.34 |
1046 |
58.6 |
0.0755 |
586 |
Lilac |
795 |
402.8 |
61/2.90 |
26.1 |
1110 |
63.8 |
0.0713 |
607 |
Arbutus |
795 |
402.8 |
37/3.72 |
26.04 |
1109 |
61.8 |
0.0715 |
605 |
Snapdragon |
900 |
456 |
61/3.09 |
27.81 |
1256 |
70.8 |
0.0628 |
654 |
Cockscomb |
900 |
456 |
37/3.96 |
27.72 |
1256 |
68.4 |
0.0631 |
652 |
Goldenrod |
954 |
483.4 |
61/3.18 |
28.62 |
1331 |
75 |
0.0593 |
677 |
Magnolia |
954 |
483.4 |
37/4.08 |
28.56 |
1331 |
72.6 |
0.0594 |
676 |
Camellia |
1000 |
506.7 |
61/3.25 |
29.25 |
1394 |
78.3 |
0.0568 |
695 |
Hawkweed |
1000 |
506.7 |
37/4.18 |
29.26 |
1395 |
76.2 |
0.0566 |
696 |
Larkspur |
1033.5 |
523.7 |
61/3.31 |
29.79 |
1442 |
81.3 |
0.0547 |
710 |
Bluebell |
1033.5 |
523.7 |
37/4.25 |
29.75 |
1441 |
78.8 |
0.0547 |
710 |
Marigold |
1113 |
564 |
61/3.43 |
30.87 |
1553 |
87.3 |
0.051 |
740 |
Hawthorn |
1192.5 |
604.2 |
61/3.55 |
31.95 |
1662 |
93.5 |
0.0476 |
771 |
Narsissus |
1272 |
644.5 |
61/3.67 |
33.03 |
1774 |
98.1 |
0.0445 |
802 |
Columbine |
1351 |
694.8 |
61/3.78 |
34.02 |
1884 |
104 |
0.042 |
829 |
Carnation |
1431 |
725.1 |
61/3.89 |
35.01 |
1997 |
108 |
0.0396 |
858 |
Gladiolus |
1510.5 |
765.4 |
61/4.00 |
36 |
2108 |
114 |
0.0375 |
885 |
Coreopsis |
1590 |
805.7 |
61/4.10 |
36.9 |
2216 |
120 |
0.0357 |
911 |
Jassamine |
1750 |
886.7 |
61/4.30 |
38.7 |
2442 |
132 |
0.0324 |
962 |
Cowslip* |
2000 |
1013 |
91/3.77 |
41.47 |
2787 |
153 |
0.0286 |
1032 |
Sagebrush* |
2250 |
1140 |
91/3.99 |
43.89 |
3166 |
167 |
0.0255 |
1099 |
Lupine* |
2500 |
1267 |
91/4.21 |
46.31 |
3519 |
186 |
0.0229 |
1163 |
Bitterrot* |
2750 |
1393 |
91/4.42 |
48.62 |
3872 |
205 |
0.0208 |
1223 |
Trillium* |
3000 |
1520 |
127/3.90 |
50.7 |
4226 |
223 |
0.0193 |
1271 |
Bluebonnet* |
3500 |
1773 |
127/4.22 |
54.86 |
4977 |
261 |
0.0165 |
1373 |
* The items marked with “*” are not in our current product range and the details are for information only.
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
DIN 48201 Part 5
Nominal Area |
Stranding |
Overall Diameter |
Weight |
Rated Strength |
Electrical Resistance |
Current Rating* |
Nominal |
Teorical |
mm² |
mm² |
No.×mm |
mm |
kg/km |
KN |
Ω/Km |
A |
16 |
15.89 |
7/1.70 |
5.1 |
43 |
2.84 |
1.8022 |
83 |
25 |
24.25 |
7/2.10 |
6.3 |
66 |
4.17 |
1.181 |
108 |
35 |
34.36 |
7/2.50 |
7.5 |
94 |
5.78 |
0.8333 |
134 |
50 |
49.48 |
7/3.00 |
9 |
135 |
7.94 |
0.5787 |
168 |
50 |
48.35 |
19/1.80 |
9 |
133 |
8.45 |
0.5951 |
166 |
70 |
65.81 |
19/2.10 |
10.5 |
181 |
11.32 |
0.4372 |
200 |
95 |
93.27 |
19/2.50 |
12.5 |
256 |
15.68 |
0.3085 |
248 |
120 |
116.99 |
19/2.80 |
14 |
322 |
18.78 |
0.2459 |
285 |
150 |
147.11 |
37/2.25 |
15.8 |
406 |
25.3 |
0.196 |
328 |
185 |
181.62 |
37/2.50 |
17.5 |
500 |
30.54 |
0.1588 |
373 |
240 |
242.54 |
61/2.25 |
20.3 |
670 |
39.51 |
0.1191 |
445 |
300 |
299.43 |
61/2.50 |
22.5 |
827 |
47.7 |
0.0965 |
506 |
400 |
400.14 |
61/2.89 |
26 |
1104 |
60.86 |
0.0722 |
602 |
500 |
499.83 |
61/3.23 |
29.1 |
1379 |
74.67 |
0.0578 |
688 |
625* |
626.2 |
91/2.96 |
32.6 |
1732 |
95.25 |
0.0462 |
786 |
800* |
802.09 |
91/3.35 |
36.9 |
2218 |
118.39 |
0.036 |
907 |
1000* |
999.71 |
91/3.74 |
41.1 |
2767 |
145.76 |
0.0289 |
1026 |
* The items marked with “*” are not in our current product range and the details are for information only.
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
Technical Data
Numbers of Wires |
Final Modules of Elasticity |
Coeficient of linear Expansion |
AL |
Kg/mm² |
lb/in² |
1/Cº |
1/Fº |
7 |
6000 |
8.5 x106 |
23.0 x10-6 |
112.8 x10-6 |
19 |
5700 |
8.1 x106 |
23.0 x10-6 |
112.8 x10-6 |
37 |
5700 |
8.1 x106 |
23.0 x10-6 |
112.8 x10-6 |
61 |
5500 |
7.8 x106 |
23.0 x10-6 |
112.8 x10-6 |
91 |
5500 |
7.8 x106 |
23.0 x10-6 |
112.8 x10-6 |
|
