Products>>Aerial Bundled Cables


LV Aerial Bundled Conductor (ABC) Cables

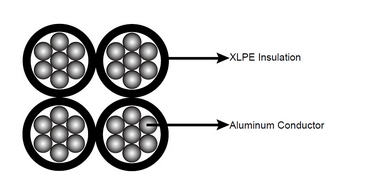

Construction

Conductor

Aluminium conductor, round stranded compressed (RM).

Insulation

XPLE compound, UV-resistant.

Core Identification

1, 2 resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm² and a minimum of 16 ribs for cores above 50 mm². In the case of five core bundles the surface of the protective core should be smooth.

Construction Parameters BS 7870


Number of Cores x Nominal Cross Section

Overall Diameter

Weight

Maximum Conductor Resistance

Minimum Breaking Load

Current Rating

No.×mm²

mm

Kg/Km

Ω/Km

KN

A

1x16 RM

8.0

74

1.910

2.5

72

1x25 RM

9.0

106

1.200

4.0

107

1x35 RM

10.5

138

0.868

5.5

132

1x50 RM

11.8

182

0.641

8.0

165

1x70 RM

13.0

252

0.443

10.7

205

1x95 RM

15.4

333

0.320

13.7

240

1x120 RM

17.0

408

0.253

18.6

290

1x150 RM

19.0

502

0.206

23.2

334

1x185 RM

21.0

611

0.164

28.7

389

1x240 RM

24.0

801

0.125

37.2

467

2x16 RM

15.6

147

1.910

2.5

72

2x25 RM

18.0

208

1.200

4.0

107

2x35 RM

20.0

277

0.868

5.5

132

2x50 RM

23.5

361

0.641

8.0

165

2x70 RM

25.4

505

0.443

10.7

205

2x95 RM

30.3

666

0.320

13.7

240

2x150 RM

38.0

1004

0.206

23.2

334

4x16 RM

18.8

286

1.910

2.5

72

4x25 RM

21.2

430

1.200

4.0

107

4x35 RM

24.1

553

0.868

5.5

132

4x50 RM

27.8

746

0.641

8.0

165

4x70 RM

31.8

1009

0.443

10.7

205

4x95 RM

37.8

1332

0.320

13.7

240

4x120 RM

54.4

1632

0.253

18.6

290

4x50 + 1x25 RM

31.9

814

0.641/1.200

8.0/4.0

165/107

4x50 + 1x35 RM

31.9

845

0.641/0.868

8.5/5.5

165/132

4x70 + 1x25 RM

36.0

1105

0.443/1.200

10.7/4.0

205/107

4x70 + 2x25 RM

40.0

1217

0.443/1.200

10.7/4.0

205/107

4x95 + 1x25 RM

41.8

1438

0.320/1.200

13.7/4.0

240/107

4x95 + 2x25 RM

42.0

1544

0.320/1.200

13.7/4.0

240/107

4x120 + 1x25 RM

59.0

2050

0.253/1.200

18.6/4.0

290/107

Other cross-sections can be offered upon request. TNB Specification(IEC 60502)


Number of Cores x Nominal Cross Section

Overal Diameter

Weight

Maximum Conductor Resistance

Minimum Breaking Load

Current Rating

No.×mm²

mm

Kg/Km

Ω/Km

KN

A

1x16+1x25 RM

15.3

160

1.910

2.5

72

3x16+1x25 RM

19.0

290

1.200

4.0

107

3x25+1x25 RM

23.2

400

0.868

5.5

132

3x35+1x25 RM

25.6

500

0.641

8.0

165

3x50+1x35 RM

30.0

680

0.443

10.7

205

3x70+1x50 RM

34.9

920

0.320

13.7

240

3x95+1x70 RM

40.6

1270

0.253

18.6

290

3x120+1x70 RM

44.1

1510

0.206

23.2

334

3x150+1x95 RM

49.2

1870

0.164

28.7

389

3x185+1x120 RM

54.9

2340

0.125

37.2

467

3x25+1x25+1x16 RM

23.2

470

1.910

2.5

72

3x35+1x25+1x16 RM

25.6

560

1.200

4.0

107

3x50+1x35+1x16 RM

30.0

740

0.868

5.5

132

3x70+1x50+1x16 RM

34.9

980

0.641

8.0

165

3x95+1x70+1x16 RM

40.6

1330

0.443

10.7

205

3x120+1x70+1x16 RM

44.1

1580

0.320

13.7

240

3x150+1x95+1x16 RM

49.2

1940

0.206

23.2

334

3x185+1x120+1x16 RM

54.9

2410

1.910

2.5

72

Other cross-sections can be offered upon request. HD 626 S1


Number of Cores x Nominal Cross Section

Overall Diameter

Weight

Minimum Breaking Load

Current Rating

No.×mm²

mm

Kg/Km

KN

A

2x16 RM

72

147

1.910

2.5

2x25 RM

107

208

1.200

4.0

2x35 RM

132

277

0.868

5.5

2x50 RM

165

361

0.641

8.0

4x16 RM

72

286

1.910

2.5

4x25 RM

107

430

1.200

4.0

4x35 RM

132

553

0.868

5.5

4x50 RM

165

746

0.641

8.0

4x70 RM

205

1009

0.443

10.7

4x95 RM

240

1332

0.320

13.7

4x120 RM

290

1632

0.253

18.6

4x35 + 1x35 RM

132/132

694

0.868/0.868

5.5/5.5

4x50 + 1x25 RM

165/107

814

0.641/1.200

8.0/4.0

4x50 + 1x35 RM

165/132

845

0.641/0.868

8.5/5.5

4x70 + 1x25 RM

205/107

1105

0.443/1.200

10.7/4.0

4x70 + 2x25 RM

205/107

1217

0.443/1.200

10.7/4.0

4x70 + 1x35 RM

205/132

1150

0.443/0.868

10.7/5.5

4x70 + 2x35 RM

205/132

1289

0.443/0.868

10.7/5.5

4x95 + 1x25 RM

240/107

1438

0.320/1.200

13.7/4.0

4x95 + 1x35 RM

240/132

1467

0.320/0.868

13.7/5.5

4x95 + 2x25 RM

240/107

1544

0.320/1.200

13.7/4.0

Other cross-sections can be offered upon request. NFC 33-209


Number of Cores x Nominal Cross Section

Overal Diameter

Weight

Maximum Conductor Resistance

Minimum Breaking Load

Current Rating

No.×mm²

mm

Kg/Km

Ω/Km

KN

A

2x10 RM

12.8

93

3.080

1.5

38

4x10 RM

15.4

183

3.080

1.5

38

2x16 RM

14.8

129

1.910

2.3

72

2x16 RN + 2x1.5 RE

14.8

176

1.910/12.100

2.3

72

4x16 RM

17.8

257

1.910

2.3

72

4x16 RN + 2x1.5 RE

17.8

304

1.910/12.100

2.3

72

2x25 RM

18.0

202

1.200

3.8

107

2x25 RM + 2x1.5 RE

18.0

249

1.200/12.100

3.8

107

4x25 RM

21.7

404

1.200

3.8

107

4x25 RM + 2x1.5 RE

21.7

451

1.200/12.100

3.8

107

2x35 RM

20.8

269

0.868

5.2

132

2x35 RM + 2x1.5 RE

20.8

316

0.868/12.100

5.2

132

4x35 RM

25.1

539

0.868

5.2

132

4x35 RM + 2x1.5 RE

25.1

586

0.868/12.100

5.2

132

2x50 RM

23.4

352

0.641

7.6

165

2x50 RM + 2x1.5 RE

23.4

399

0.641/12.100

7.6

165

1x54.6 RM + 3x25 RM

21.7

507

0.630/1.200

3.8

107

1x54.6 RM + 3x25 RM + 1x16 RM

24.3

573

0.630/1.200/1.910

3.8/2.3

107/72

1x54.6 RM + 3x25 RM + 2x16 RM

29.7

639

0.630/1.200/1.910

3.8/2.3

107/72

1x54.6 RM + 3x25 RM + 3x16 RM

31.1

705

0.630/1.200/1.910

3.8/2.3

107/72

1x54.6 RM + 3x35 RM

25.1

615

0.630/0.868

5.2

132

1x54.6 RM + 3x35 RM + 1x16 RM

28.1

680

0.630/0.868/1.910

5.2/2.3

132/72

1x54.6 RM + 3x35 RM + 2x16 RM

34.3

748

0.630/0.868/1.910

5.2/2.3

132/72

1x54.6 RM + 3x35 RM + 3x16 RM

35.9

814

0.630/0.868/1.910

5.2/2.3

132/72

1x54.6 RM + 3x35 RM + 1x25 RM

28.1

714

0.630/0.868/1.200

5.2/3.8

132/107

1x54.6 RM + 3x50 RM

28.2

741

0.630/0.641

7.6

165

1x54.6 RM + 3x50 RM + 1x16 RM

31.6

806

0.630/0.641/1.910

7.6/2.3

165/72

1x54.6 RM + 3x50 RM + 2x16 RM

38.6

875

0.630/0.641/1.910

7.6/2.3

165/72

1x54.6 RM + 3x50 RM + 3x16 RM

40.4

940

0.630/0.641/1.910

7.6/2.3

165/72

1x54.6 RM + 3x50 RM + 1x25 RM

31.6

841

0.630/0.641/1.200

7.6/3.8

165/107

1x54.6 RM + 3x70 RM

33.0

950

0.630/0.443

10.2

205

1x54.6 RM + 3x70 RM + 1x16 RM

37.0

1014

0.630/0.443/1.910

10.2/2.3

205/72

1x54.6 RM + 3x70 RM + 2x16 RM

45.2

1083

0.630/0.443/1.910

10.2/2.3

205/72

1x54.6 RM + 3x70 RM + 3x16 RM

47.3

1148

0.630/0.443/1.910

10.2/2.3

205/72

1x54.6 RM + 3x70 RM + 1x25 RM

37.0

1048

0.630/0.443/1.200

10.2/3.8

205/107

1x54.6 RM + 3x70 RM + 2x25 RM

45.2

1150

0.630/0.443/1.200

10.2/3.8

205/107

1x54.6 RM + 3x70 RM + 3x25 RM

47.3

1250

0.630/0.443/1.200

10.2/3.8

205/107

1x54.6 RM + 3x95 RM

37.4

1176

0.630/0.320

13.5

240

1x54.6 RM + 3x95 RM + 1x16 RM

41.9

1243

0.630/0.320/1.910

13.5/2.3

240/72

Other cross-sections can be offered upon request. AS/NZS 3560 Part 1


Number of Cores x Nominal Cross Section

Overall Diameter

Weight

Minimum Breaking Load

Current Rating

No.×mm²

mm

Kg/Km

KN

A

2x16 RM

15.0

140

4.4

78

2x25 RM

17.6

210

7.0

105

2x35 RM

19.6

270

9.8

125

2x50 RM

22.8

370

11.4

150

2x95 RM

30.6

680

15.3

230

3x25 RM

19.0

310

8.8

97

3x35 RM

21.1

410

9.8

120

3x50 RM

24.6

550

11.4

140

4x16 RM

18.1

290

8.8

74

4x25 RM

21.2

410

14.0

97

4x35 RM

23.7

550

19.6

120

4x50 RM

27.5

740

28.0

140

4x70 RM

31.9

1000

39.2

175

4x95 RM

36.9

1370

53.2

215

4x120 RM

40.6

1690

67.2

250

4x150 RM

43.9

2020

84.0

280

Other cross-sections can be offered upon request.
