 Bus cables |
|

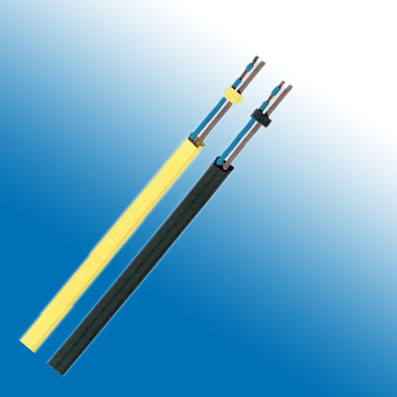

| Product Name/Code :ASI Bus |
|
|
Construction:
Type/Area of Application |
Actuator Sensor Interface |
Cable Construction |
2x1.5 mm2 |
Inner Conductor Diameter |
Copper, tinned |
Conductor Insulation |
Rubber Compound /TPE |
Conductor Colors |
Blue, brown |
Stranding Element |
- |
Shielding |
- |
Shielding 2 |
- |
Total Shielding |
- |
Outer Jacket Material |
EPDM/PUR/ PVC/PE |
Outer Jacket Color |
Yellow /Black |
Electrical Data:
Conductor Resistance: |
27.4 Ohm/km max. |
Insulation Resistance |
1.00 GOhm x km min. |
Working Voltage |
Max: 300 V |
Test Voltage |
1.0 KV at 15 min. |
Technical Data：
Weight |
approximately 57.0 kg/km |
Min. Bending Radius (Laying) |
6 x OD mm |
Operating Temp.Range, min. |
- 40 °C |
Operating Temp.Range, max. |
+85 °C |
|
| |
|
|
|
|
|
| |
|
|
