 Bus cables |
|

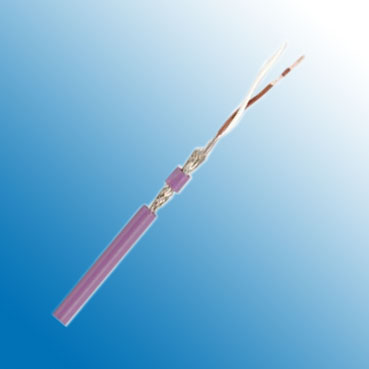

| Product Name/Code :CAN Bus |
|
|
Construction:
Type/Area of Application |
Fixed Installation, Indoor |
Fixed Installation, Indoor |
Cable Construction |
1x2x0.22 mm2 (stranded) |
4x1x0.22 mm2 (stranded) |
1x2x0.34 mm2 (stranded) |
4x1x0.34 mm2 (stranded) |
1x2x0.50 mm2 (stranded) |
4x1x0.50 mm2 (stranded) |
Inner Conductor |
Copper, bare (AWG 24/7) |
Copper, bare (AWG 24/7) |
Copper, bare (AWG 22/7) |
Copper, bare (AWG 22/7) |
Copper, bare (AWG 20/7) |
Copper, bare (AWG 20/7) |
Conductor Insulation |
CellularPE |
Cellular PE |
Conductor Colors |
white, brown |
white, brown, green-yellow |
Stranding Element |
Double conductor |
Star quad |
Shielding 1 |
Polyester foil over stranded bundle |
Polyester foil over stranded bundle |
Shielding 2 |
- |
- |
Total Shielding |
Copper braid, tinned |
Copper braid, tinned |
Outer Jacket Material |
PVC(static) / PUR(flexing) |
PVC(static) / PUR(flexing) |
Outer Diameter |
5.4 mm ± 0.2 mm |
6.9 mm ± 0.2 mm |
6.5 mm ± 0.2 mm |
8.0 mm ± 0.2 mm |
7.0 mm ± 0.2 mm |
8.5 mm ± 0.2 mm |
Outer Jacket Color |
Violet |
Violet |
Electrical Data:
Characteristic Impedance@1MHz |
120 Ω ± 10 Ω |
120 Ω ± 10 Ω |
Conductor Resistance |
186.0 Ohm/km max. |
186.0 Ohm/km max. |
Insulation Resistance |
1.00 GOhm x km min. |
1.00 GOhm x km min. |
Mutual Capacitance@800Hz |
40.0 nF/km nom. |
40.0 nF/km nom. |
Working Voltage |
250V |
250V |
Test Voltage |
1.5 kV |
1.5 kV |
Attenuation |
1 MHz |
1.3 dB/100m |
5 MHz |
3.1 dB/100m |
10 MHz |
4.3 dB/100m |
20 MHz |
6.4 dB/100m |
Technical Data：
Weight: |
approximately 35.0 kg/km |
approximately 60.0 kg/km |
approximately 54.0 kg/km |
approximately 77.0 kg/km |
approximately 69.0 kg/km |
approximately 100.0 kg/km |
Min. Bending Radius (Laying): |
15 x OD mm |
15 x OD mm |
Operating Temp.Range, min.: |
- 40 °C |
- 40 °C |
Operating Temp.Range, max.: |
+70 °C |
+70 °C |
|
| |
|
|
|
|
|
| |
|
|
