Application and description:
This ETFE insulated single-core MIL-W-22759/17 wires are used for MIL-Spec and Aerospace and other applications requiring light weight, tight diameter tolerances, and enhanced mechanical toughness. ETFE insulation also provides exceptional resistance to radiation and chemicals.
Construction Details:
ETFE is extruded

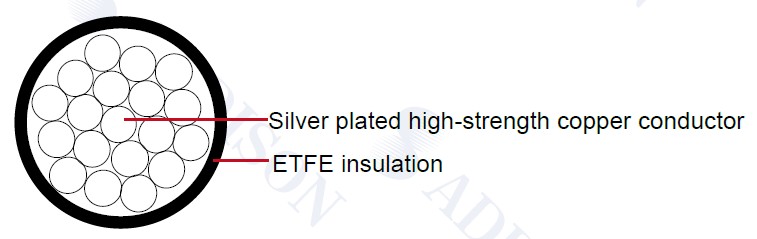

Construction：
Conductor: Stranded silver plated high-strength copper alloy conductor
Insulation: Extruded ETFE Insulation
Insulating Material Thickness: 0.25 mm
Technical Parameters:
Temperature Rating: 150°C
Voltage Rating: 600 volts
SAE AS22759/17
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Max. Resistance @ 20°C OHMS/MFT |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
Mm |
|
(in) |
Mm |
(in) |
mm |
|
26 |
19/38 |
0.018 |
0.457 |
0.02 |
0.508 |
14.2 |
0.038 |
0.965 |
0.042 |
1.067 |
1.67 |
24 |
19/36 |
0.023 |
0.584 |
0.026 |
0.66 |
22.4 |
0.043 |
1.092 |
0.047 |
1.194 |
2.32 |
22 |
19/34 |
0.029 |
0.737 |
0.033 |
0.838 |
35.8 |
0.05 |
1.27 |
0.054 |
1.372 |
3.4 |
20 |
19/32 |
0.037 |
0.94 |
0.041 |
1.041 |
58.1 |
0.058 |
1.473 |
0.062 |
1.575 |
4.96 |
