Application and description:
This ETFE insulated single-core MIL-W-22759/19 wires are used for MIL-Spec and Aerospace and other applications requiring light weight, tight diameter tolerances, and enhanced mechanical toughness. ETFE insulation also provides exceptional resistance to radiation and chemicals.
Construction Details:
ETFE is extruded
Construction：

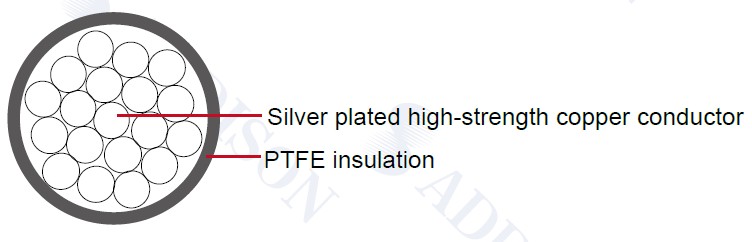

Conductor: Stranded silver plated high-strength copper alloy conductor
Insulation: Extruded Thin Wall ETFE Insulation
Insulating Material Thickness: 0.15 mm
Technical Parameters:
Temperature Rating: 150°C
Voltage Rating: 600 volts
SAE AS22759/19
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
Mm |
(in) |
mm |
|
26 |
19/38 |
0.0175 |
0.445 |
0.0204 |
0.518 |
0.03 |
0.762 |
0.034 |
0.864 |
1.4 |
24 |
19/36 |
0.0225 |
0.572 |
0.0244 |
0.62 |
0.034 |
0.864 |
0.038 |
0.965 |
1.9 |
22 |
19/34 |
0.0285 |
0.724 |
0.0314 |
0.798 |
0.041 |
1.041 |
0.045 |
1.143 |
2.9 |
20 |
19/32 |
0.0365 |
0.927 |
0.0395 |
1.003 |
0.049 |
1.245 |
0.053 |
1.346 |
4.6 |
|
