Military Cables
Product Name/Code : MIL-W-22759/85

Application and description:

This PTFE tape insulation single-core MIL-W-22759/84 wires are used for MIL-Spec and Aerospace, these cables are large size, high-performance aerospace hook up wires with a four-layer insulation of PTFE tape and PTFE/polyimide/PTFE tape, with an outer layer of polyamide braid for superior abrasion resistance. These wires are designed for aerospace and other applications which require excellent thermal stability and abrasion resistance.

Construction Details:

A PTFE layer with an intermediate K layer followed by two top PTFE layers Over these layers is a braid of an Aramid.

Construction:

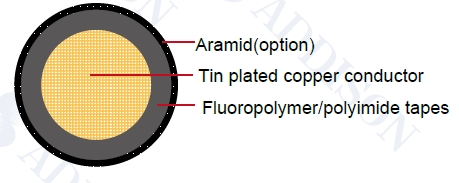

Conductor: Stranded tin plated copper conductor

Insulation: Fluoropolymer/Polyimide Tape Insulation

Insulating Material Thickness: 1.0mm to 1.3mm

Braid:Aramid(option)

Technical Parameters:

Temperature Rating: 150°C
 Voltage Rating: 600 volts

MIL-Spec Wire

SAE AS22759/85

Color Code: MIL-STD-681

AWG Size

Conductor Stranding

Conductor Diam.

Conductor Diam.

Min O.D.

Max O.D.

Approx LBS/MFT

Min

max





In

Mm

In

mm

(in)

Mm

(in)

mm



2

665/30

0.32

8.128

0.34

8.636

0.36

9.144

0.38

9.652

227

1

817/30

0.366

9.296

0.38

9.652

0.4

10.16

0.42

10.668

295

1/0

1045/30

0.395

10.033

0.425

10.795

0.442

11.227

0.462

11.735

351

2/0

1330/30

0.44

11.176

0.475

12.065

0.498

12.649

0.528

13.411

432

3/0

1665/30

0.5

12.7

0.54

13.716

0.554

14.072

0.584

14.834

542

4/0

2109/30

0.565

14.351

0.605

15.367

0.615

15.621

0.655

16.637

689
