 Conductor：
Annealed Copper Wire (Tinned Strand)
Insulation：
PVC (Polyvinyl Chloride)
Drain Wire:
Annealed Copper Wire (Top-Tinned Strand or Tinned Single)
Shield:
Al-Mylar Tape overall shield

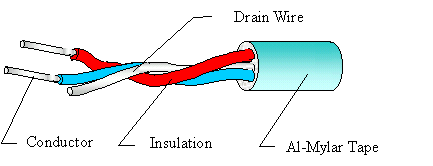

Structure：
Conductor |
Insulation |
Drain
Wire |
Twist |
Al-Mylar
Tape |
AWG |
Construction |
Diameter |
Min.
Thickness |
Nominal
Thickness |
Diameter |
Construction |
Pitch |
34 |
7 / 0.06TA |
approx.0.18 mm |
0.10 mm |
0.10 mm |
0.50 ± 0.02 mm |
7 / 0.10TA |
5 ~ 8 |
0.025× 8 mm |
Characteristics：
Items |
Specification |
Rating |
80℃ 30V |
Insulation Resistance |
Min.1000MW - Km (20℃) at DC 500V |
Characteristic Impedance |
100W ± 10W |
|
