Railway Cables


WTB (Wired Train Bus)/MVB (Multifunction Vehicle Bus) Cables

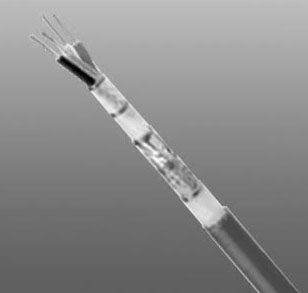

MVB (Multifunction Vehicle Bus) Cables

Application

The cables are designed for transmission of digital signals under baud rate of 10M inside of rolling stock to connect fi xed parts. The communication system in a locomotive uses a wire backed bus system to the TCN standard for control and instrumentation and for diagnostics. This bus system consists of the rail bus WTB
(Wired Train Bus) and the road bus MVB (Multifunction Vehicle Bus) which are connected via redundant gateways.

Standards

● DIN 5510-1

Construction

Conductors
Stranded tinned copper conductor according to IEC 60228 class 5.

Insulation
Foam skin-composite PE made of inner cellular layer and outer solid skin.

Core Wrapping
Plastic tape(s).

EMC Screen
Tinned copper braid.

Outer Sheath
Cross-linked oil resistant LSZH compound.

Electrical Characteristics at 20℃

Nominal Cross Section
mm²
0.5
Maximum Conductor Resistance
Ω/km
41
Impedance@0.5-2MHz
Ω
120+/-12
Maximum Attenuation @1MHz
dB/km
12.5
Maximum Attenuation @1.5MHz
dB/km
15
Maximum Attenuation @2MHz
dB/km
18
Maximum Attenuation @3MHz
dB/km
21
Maximum Transfer Impedance
mΩ/m
20
Nominal Voltage Rating
V
300

Mechanical and Thermal PropertiesMinimum Bending Radius:5×OD (single); 10×OD (multiple)
Temperature Range:-40℃ to +90℃ (during operation); -20℃ +50℃ (during installation)
