Germany Standard
Single-core cable
FLR13Y
Application
Automotive TPE-E insulated single-core cable is used for automotive industry. It has good mechanical and thermal properties and excellent resistance to aggressive media.

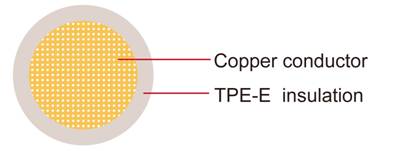

Construction:
Conductor:
Cu-ETP1 bare according to DIN EN13602
Insulation:
Thermoplastic elastomer on polyester basis (TPE-E)
Standard Compliance:
ISO 6722 Class B
Technical Parameters:
Operating temperature:–40 °C to +150 °C
|
Conductor |
Insulation |
Cable |
Nominal
cross-
section |
No. and Dia. of Wires |
Diameter max |
Electrical resistance at 20℃ max. mΩ/m |
thickness wall nom. |
Overall diameter min. |
Overall diameter max. |
Weight approx. |
mm2 |
No./mm |
mm |
mΩ/m |
(mm) |
(mm) |
(mm) |
kg/km |
1x0.50 |
19/0.19 |
1.00 |
37.10 |
0.30 |
1.50 |
1.70 |
6 |
1x0.75 |
19/0.23 |
1.20 |
24.70 |
0.30 |
1.70 |
1.90 |
9 |
1x1.00 |
19/0.26 |
1.35 |
18.50 |
0.30 |
1.90 |
2.10 |
11 |
1x1.50 |
19/0.32 |
1.70 |
12.70 |
0.30 |
2.20 |
2.40 |
16 |
1x2.00 |
19/0.38 |
2.00 |
9.31 |
0.30 |
2.40 |
2.70 |
22 |
1x2.50 |
19/0.41 |
2.20 |
7.60 |
0.35 |
2.70 |
3.00 |
25 |
1x4.00 |
56/0.31 |
2.75 |
4.71 |
0.40 |
3.40 |
3.70 |
4 |
1x6.00 |
84/0.31 |
3.30 |
3.10 |
0.40 |
4.00 |
4.30 |
60 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request
|
