Germany Standard
Single-core cable
FLYY
Application
Automotive PVC insulated single-core unshielded low-tension wire is used for automobiles, Motorcycles and other motor vehicles.

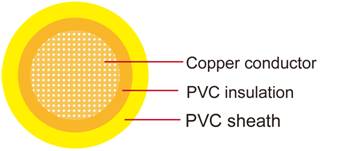

Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
PVC
Sheath:
PVC
Standard Compliance:
ISO 6722
Technical Parameters:
Operating temperature:-40℃ to 90℃
|
Conductor |
Insulation |
Cable |
Nominal
Cross-
section |
No. and Dia. of Wires |
Diameter max. |
Electrical resistance at 20℃ max. |
Thickness Wall Nom. |
Diameter of Core |
Sheath Thickness |
Overall Diameter Min. |
Overall Diameter Max |
Weight approx. |
(mm2) |
No./mm |
mm |
mΩ/m |
(mm) |
(mm) |
(mm) |
(mm) |
mm |
kg/km |
1x0.50 |
16/0.21 |
1.00 |
37.10 |
0.60 |
2.10 |
0.40 |
2.70 |
3.10 |
14 |
1x0.75 |
24/0.21 |
1.20 |
24.70 |
0.60 |
2.30 |
0.40 |
3.00 |
3.30 |
17 |
1x1.00 |
32/0.21 |
1.35 |
18.50 |
0.60 |
2.50 |
0.40 |
3.20 |
3.60 |
20 |
1x1.50 |
30/0.26 |
1.70 |
12.70 |
0.60 |
2.80 |
0.50 |
3.70 |
4.10 |
28 |
1x2.00 |
40/0.26 |
2.00 |
9.42 |
0.60 |
3.00 |
0.50 |
3.90 |
4.30 |
33 |
1x2.50 |
50/0.26 |
2.20 |
7.60 |
0.70 |
3.50 |
0.50 |
4.30 |
4.80 |
41 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
|
