600/1000V, LSOH Insulated LSOH Sheathed Unarmoured Power and Control Cables
![](image/1HH-F.jpg)
STANDARDS
Basic design adapted to EN 50525-3-11
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test) IEC 60332-1
Halogen Free IEC 60754-1
Smoke emmision IEC 61034-1&2;
No Corrosive Gas Emission IEC 60754-2

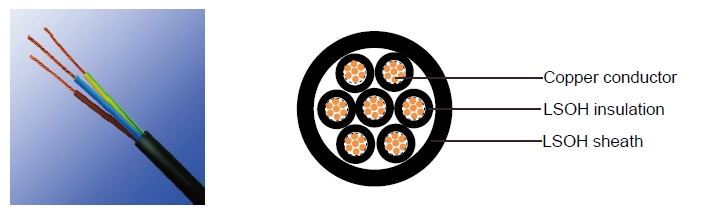

CABLE CONSTRUCTION
Conductor: Annealed copper wire, stranded according to BS EN 60228 class 5.
Insulation: Halogen free compound.
Inner Covering(Option): Extruded or lapped.
Outer Sheath: Flame retardant, UV resistance, cold resistance LSOH compound.
Protective conductor: G = with GN-YE protective conductor X = without protective conductor
CONSTRUCTION PARAMETERS
No. of Core X Cross Section |
Nominal Overall Diameter |
Approx. Weight |
No. of Core X Cross Section |
Nominal Overall Diameter |
Approx. Weight |
mm2 |
mm |
mm |
mm2 |
mm |
mm |
2 X 1.0 |
8.6 |
107 |
4 G 2.5 |
12.2 |
262 |
3 G 1.0 |
9.0 |
123 |
5 G 2.5 |
13.3 |
307 |
4 G 1.0 |
9.6 |
144 |
7 G 2.5 |
14.4 |
390 |
5 G 1.0 |
10.4 |
167 |
12 G 2.5 |
18.7 |
624 |
7 G 1.0 |
11.1 |
206 |
18 G 2.5 |
22.0 |
879 |
12 G 1.0 |
14.0 |
314 |
25 G 2.5 |
25.8 |
1212 |
18 G 1.0 |
16.1 |
428 |
3 G 4 |
12.6 |
290 |
25 G 1.0 |
18.6 |
569 |
4 G 4 |
13.7 |
351 |
No. of Core X Cross Section |
Nominal Overall Diameter |
Approx. Weight |
No. of Core X Cross Section |
Nominal Overall Diameter |
Approx. Weight |
2 x 1.5 |
9.6 |
137 |
5 G 4 |
14.9 |
416 |
3 G 1.5 |
10.1 |
161 |
3 G 6 |
13.9 |
377 |
4 G 1.5 |
10.8 |
190 |
4 G 6 |
15.1 |
463 |
5 G 1.5 |
11.7 |
221 |
5 G 6 |
16.8 |
559 |
7 G 1.5 |
12.6 |
276 |
7 G 6 |
19.3 |
714 |
12 G 1.5 |
16.1 |
427 |
4 G 10 |
18.7 |
757 |
18 G 1.5 |
18.8 |
596 |
5 G 10 |
20.7 |
915 |
25 G 1.5 |
21.7 |
799 |
7 G 10 |
22.1 |
1065 |
2 x 2.5 |
10.8 |
184 |
4 G 16 |
21.3 |
1070 |
3 G 2.5 |
11.3 |
219 |
5 G 16 |
23.6 |
1296 |
Note : Other sizes are available upon request.
|
